Micsig MO3 Series Oscilloscope Synchronizer
Precise synchronization of up to 4 oscilloscopes with 10 MHz clock, trigger distribution and minimal time deviation.
Volume discounts on request!
€305.00 Net
€362.95 incl. VAT
Shipping country
Customer Group
Währung
Delivery time: 1-2 weeks
Content: 1
Delivery time: 1-2 weeks
Further information
Product number: MOS4
Documents
Description

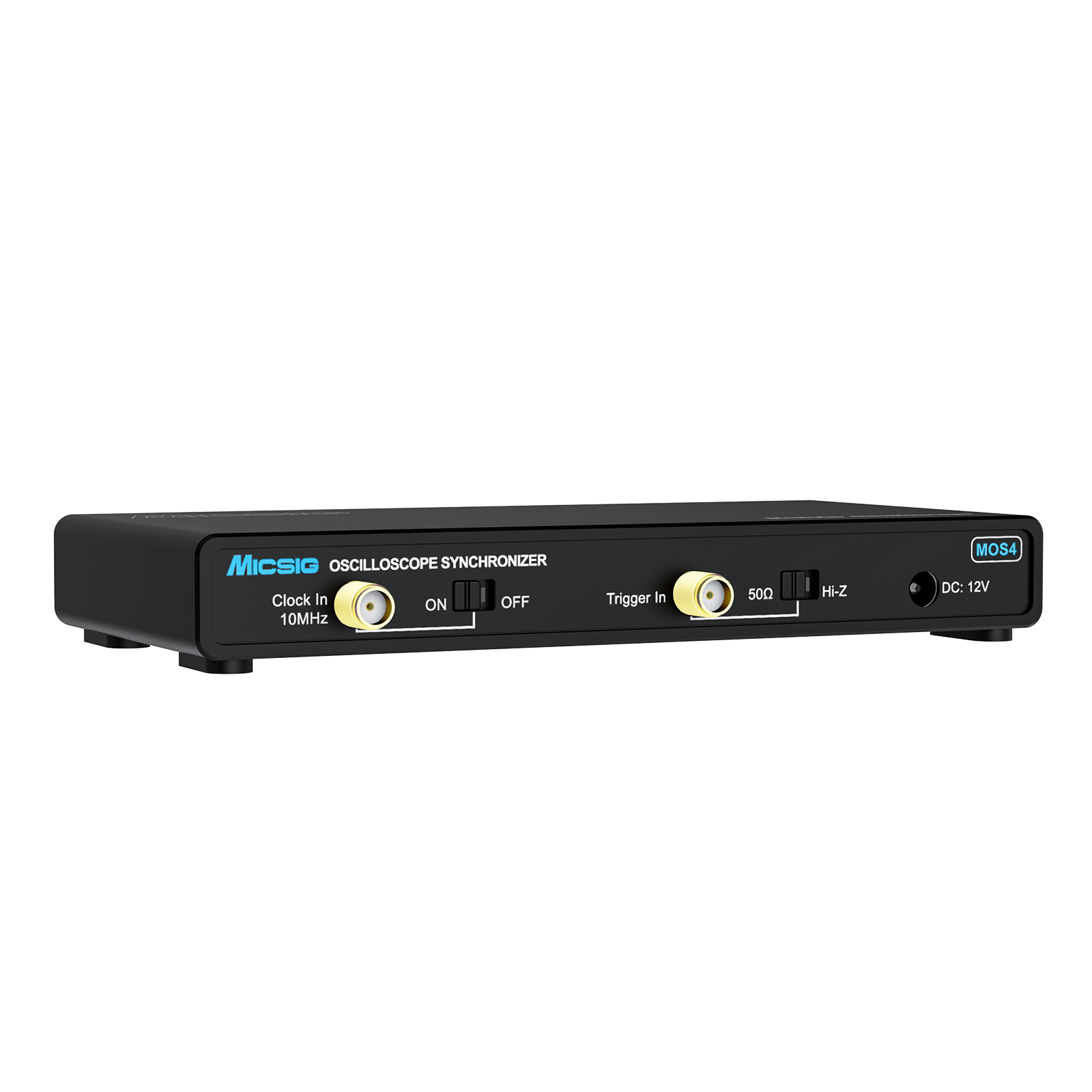

The Micsig MOS4 is a precise oscilloscope synchronizer for the MO3 series, enabling the simultaneous synchronization of up to four oscilloscopes. Its 10 MHz clock and trigger distribution allows for the synchronous acquisition of up to 16 channels. With a time deviation of less than 100 ps, the MOS4 is particularly well-suited for demanding measurement tasks such as high-speed digital analysis, mixed-signal testing, and radar system verification. The device also supports internal and external clock signals and a switchable input impedance between 50 Ω and high-Z.| parameter | Signal / Type | specification |
|---|---|---|
| Trigger out | Single pulse | Output range 1.55V-1.65V, typically 1.6V |
| Trigger in | Single pulse | Minimum input voltage 500 mV, range -5 V~5 V, 50 Ω or High-Z load |
| Clock out | 10 MHz square wave | Output range 430mV-470mV, typically 450mV |
| Clock in | 10 MHz square wave | Minimum input voltage 500 mV, range -5 V~5 V, 50 Ω load |
| Overshoot | < 10% | |
| power | 12 V DC / 1.5 A | |
| Connector | SMA | |
| Operating Temperature | 0 °C – 45 °C | |
| Storage Temperature | -20 °C – 70 °C | |
| ESD | ±8 kV | |
| Weight | 190 g ±10 g | |
| L × W × H | 132.4 mm × 77 mm × 18.7 mm |
