Bench Oscilloscope Series
Series comparison
| Series |  MDO benchtop oscilloscopes | MHO-3 Bench oscilloscopes |  MHO-6 benchtop oscilloscopes |
|---|---|---|---|
| Bandwidth | 250 MHz, 350 MHz, 500 MHz | 250 MHz, 350 MHz, 500 MHz | 350 MHz, 500 MHz, 1 GHz |
| Vertical resolution | 8 bit | 12 bit | 12 bit |
| Operation | Touch, buttons & encoder | Touch, buttons & encoder | Touch, buttons & encoder |
| Remote control | Mouse, SCPI, remote control app (Android/IOS/PC) | Mouse, SCPI, remote control app (Android/IOS/PC) | Mouse, SCPI, remote control app (Android/IOS/PC) |
| Display | 14 inch display | 14 inch display | 16 inch display |
| Rise time | ≤1.4ns to ≤0.7ns | ≤1.4ns to ≤0.7ns | ≤1ns to ≤0.35ns |
| Channels | 4 | 4 | 8 |
| Sampling rate | 3 GSa/s | 3 GSa/s | 6 GSa/s |
| Acquisition rate | 230.000 wfm/s | 230.000 wfm/s | 500.000 wfm/s |
| Storage depth | 360 Mpts | 360 Mpts | 1800 Mpts |
| Bus decoding | RS-232/422/485/UART, LIN, CAN, CAN FD, I²C, SPI | RS-232/422/485/UART, LIN, CAN, CAN FD, I²C, SPI | RS-232/422/485/UART, LIN, CAN, CAN FD, I²C, SPI |
| Interfaces | Mic-OPI™, BNC, LAN, WIFI, USB 3.0/2.0 Host, USB Type-C, HDMI, trigger output | Mic-OPI™, BNC, LAN, WIFI, USB 3.0/2.0 host, USB Type-C, HDMI, trigger output | Mic-OPI™, BNC, LAN, WIFI, USB 3.0/2.0 host, USB Type-C, HDMI, trigger output |
| Battery operation | No | No | No |
MDO2504
MDO2504 Digital Oscilloscope The MDO2504 is a 4 channel oscilloscope with 360 Mpts memory depth, 250 MHz bandwidth & 230.0000 wfm/s sampling rate.
€1,799.00*
MDO3504
MDO3504 Digital Oscilloscope The MDO3504 is a 4 channel oscilloscope with 360 Mpts memory depth, 350 MHz bandwidth & 230.0000 wfm/s sampling rate.
€1,899.00*
MDO5004
MDO5004 Digital Oscilloscope The MDO5004 is a 4 channel oscilloscope with 360 Mpts memory depth, 500 MHz bandwidth & 230.0000 wfm/s sampling rate.
€1,949.00*
MHO3-2504
MHO3-2504 12 bit oscilloscope The MHO3-2504 is a 12 bit oscilloscope with 360 Mpts memory depth, 250 MHz bandwidth & 4 channels.
€2,299.00*
MHO3-3504
MHO3-3504 12 bit oscilloscope The MHO3-3504 is a 12 bit oscilloscope with 360 Mpts memory depth, 350 MHz bandwidth & 4 channels.
€2,589.00*
MHO3-5004
MHO3-5004 12 bit oscilloscope The MHO3-5004 is a 12 bit oscilloscope with 360 Mpts memory depth, 500 MHz bandwidth & 4 channels.
€3,249.00*

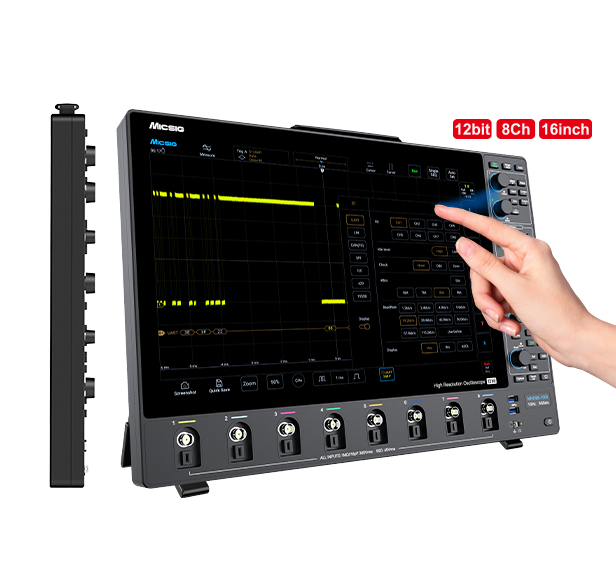

MHO68-1000
MHO68-1000 12 bit oscilloscope The Micsig MHO68-1000 is a 12 bit oscilloscope with 1 GHz, 8 channels & suitable for measuring complex circuits
Variants from €11,999.00*

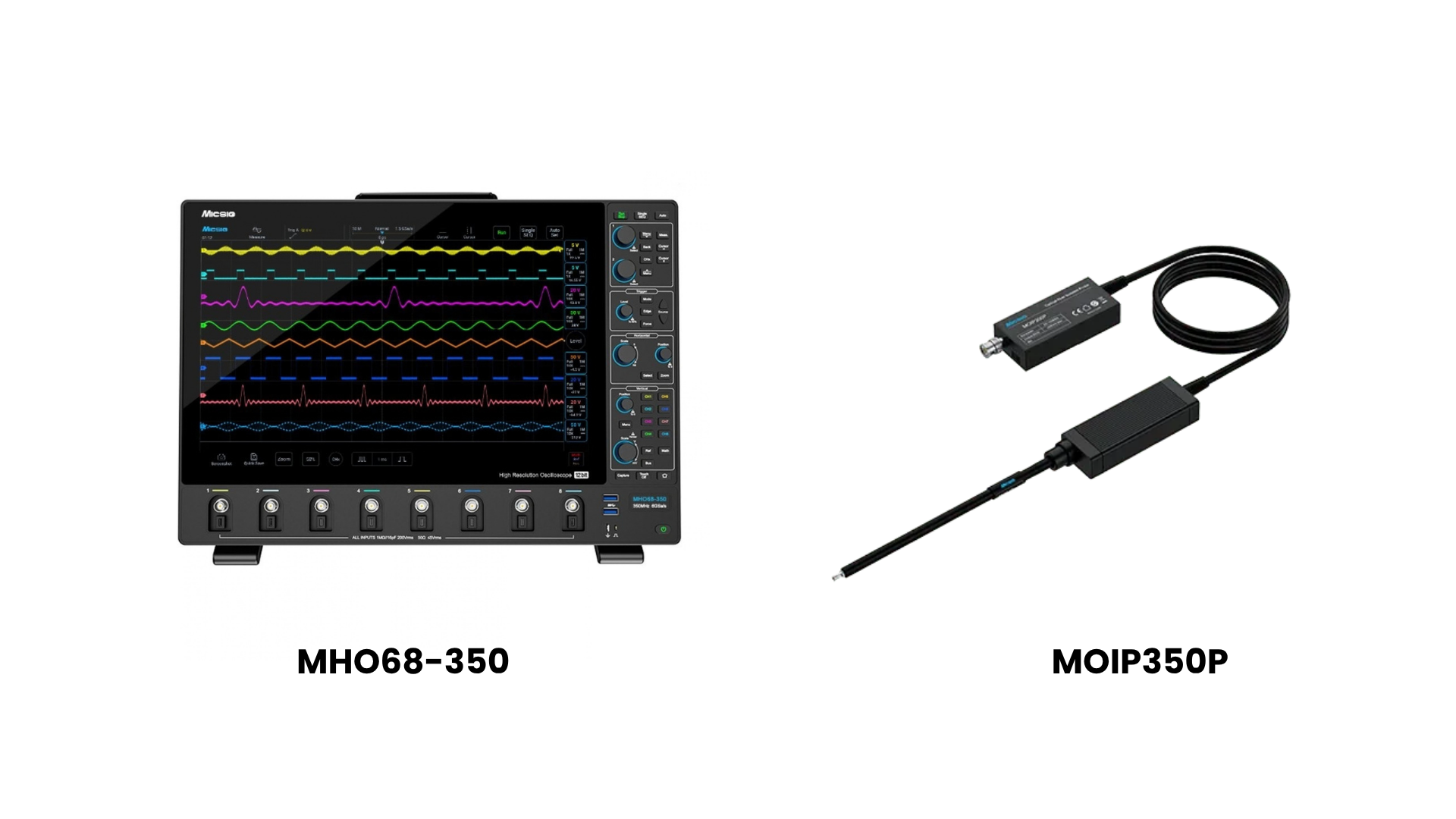

MHO68-350
MHO68-350 12 bit oscilloscope The Micsig MHO68-350 is a 12 bit oscilloscope with 350 MHz, 8 channels & suitable for measurements of complex circuits
€11,999.00*

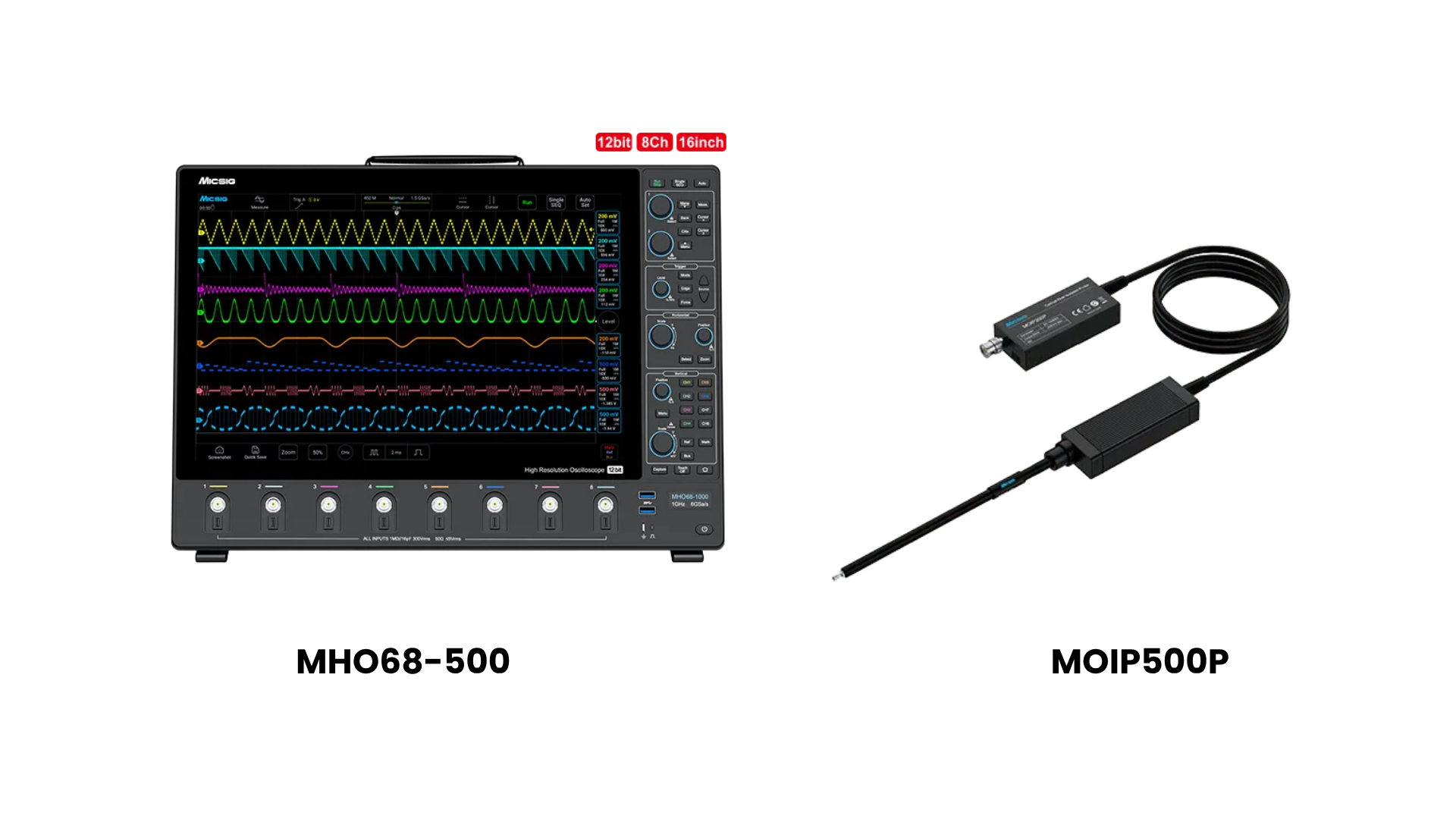

MHO68-500
MHO68-500 12 bit oscilloscope The Micsig MHO68-500 is a 12 bit oscilloscope with 500 MHz, 8 channels & suitable for measuring complex circuits
Variants from €11,999.00*
