AHO14 series

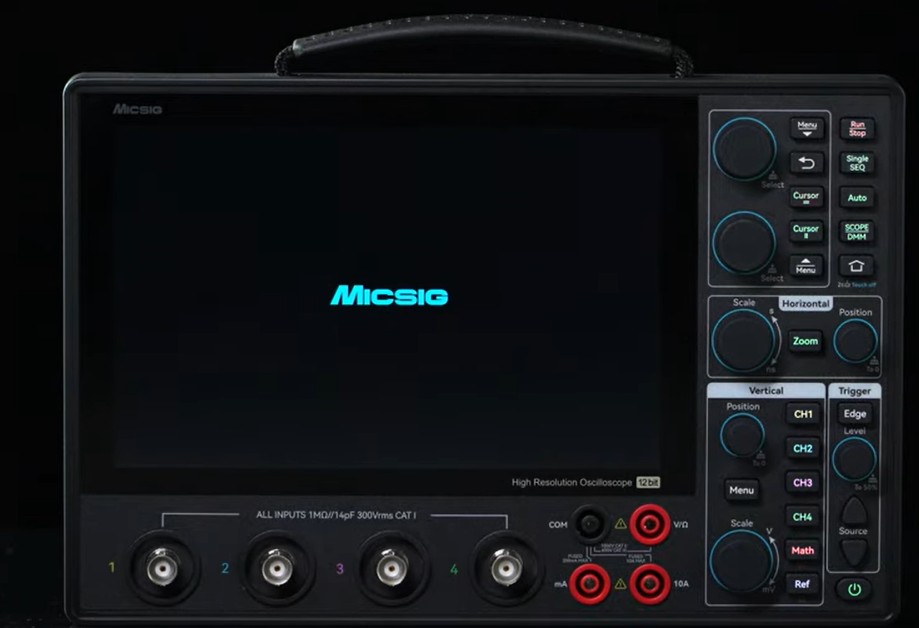

The Micsig AHO1 is a professional, high-resolution automotive oscilloscope specifically designed for the diagnosis and analysis of vehicle systems. It combines 12-bit ADC technology with a bandwidth of up to 200 MHz, a sampling rate of 1 GSa/s, and a memory depth of 110 Mpts, enabling the precise display of even the smallest signal waveforms. With four analog channels, the instrument is ideally suited for the simultaneous analysis of multiple signals in complex systems.
The oscilloscope supports both classic combustion engine vehicles and modern electric vehicles, offering comprehensive automotive diagnostic functions for sensors, actuators, ignition systems, and vehicle networks such as CAN, CAN FD, LIN, and FlexRay. Numerous predefined test modes are also available, enabling fast and efficient troubleshooting.
With its exceptionally compact design, measuring just 3.1 cm in thickness and featuring an integrated lithium-ion battery, the AHO1 is ideally suited for mobile use. The 8-inch touchscreen ensures intuitive operation, while features such as an integrated multimeter, serial protocol decoding, comprehensive trigger and analysis functions, and a variety of interfaces including USB, LAN, and HDMI make the device a versatile solution for workshops, development, and service.
Series overview
| Model |  AHO14-200 |
| bandwidth | 200 MHz |
| Ascent time | ≤ 1.75 ns |
| Analog channels | 4 |
| Sampling rate | 1 GSa/s |
| Storage depth | 110 Mpts |
| Maximum waveform capture rate | 50,000 wfms/s |
| Vertical resolution | 12-bit |
| interfaces | USB 3.0 Host, USB Type-C, LAN, HDMI, Trigger Out |
| Supported Tests | Charging/starting systems, sensors, actuators, ignition, networks (CAN L/H, CAN FD, LIN, FlexRay, K-Line), combination tests |
| Display | 8" TFT LCD touchscreen, 1280 × 800 pixels |
| Battery (optional) | 3.7 V, 16000 mAh Lithium-ion |
| charge | 12V power supply, supports USB Type-C |
| Multimeter accuracy | 4 5/6 digits |
| Dimensions / Weight | 265 × 174 × 31 mm / 1.73 kg |
