Show all categories Portable Tablet Oscilloscopes
Back Show Portable Tablet Oscilloscopes
Tablet-Oszilloskop-header2

Tablet Oscilloscopes Request demo unit

Micsig offers several series of portable oscilloscopes in various sizes, available both with and without physical control knobs.

  • ETO Series: Touch, 14-inch, up to 500 MHz, 360 Mpts, 3 GSa/s
  • TO Series: Touch, 10.1-inch, up to 300 MHz, up to 220 Mpts, 2 GSa/s
  • STO Series: Touch & control knobs, 8-inch, 100 to 200 MHz, 70 Mpts, 1 GSa/s

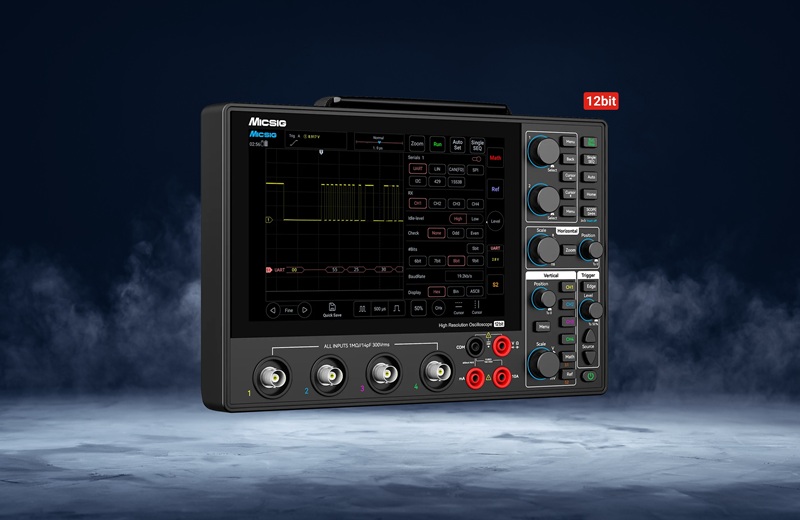

  • MHO14: Touch & control knobs, 8-inch, 100 to 200 MHz, 110 Mpts, 1 GSa/s - Multimeter function

Tablet Oscilloscope Series

Tablet-Oszilloskope_(1)
ETO 14 inch tablet oscilloscopes
TO 10.1 inch tablet oscilloscopes
STO-Serie
STO 8 inch tablet oscilloscopes
MO14 Oscilloscopes with Multimeter

Type overview

SeriesETO-Small
ETO Tablet Oscilloscopes		TO Small
TO Tablet Ozilloscopes		SATO-Small
STO Tablet Oscilloscopes		MHO14-Oszilloskop-Serie-klein
MHO14 Tablet Oscilloscopes
Bandwidth350 MHz to 500 MHz100 to 300 MHz100 to 200 MHz100 to 200 MHz
Vertical Resolution8-bit8-bit8-bit12-bit
OperationTouchTouchTouch, buttons & encodersTouch, buttons & Encoder
Remote controlMouse, SCPI, Remote Control App (Android/IOS/PC)Mouse, SCPI, Remote Control App (Android/IOS/PC)Mouse, SCPI, Remote Control App (Android/IOS/PC)Mouse, SCPI, Remote Control App (Android/IOS/PC)
Screen14 inch display10.1 inch display8 inch display8 inch display
Rise time≤1ns to ≤0.7ns≤3.5ns to ≤1.16ns≤3.5ns to ≤1.16ns≤3.5ns to ≤1.75ns
Channels42 to 42 to 44
Sample rate3GSa/s1 to 2 GSa/s1 GSa/s1 GSa/s
Capture rate230,000 wfm/s78,000 wfms/s to 300,000 wfm/s130,000 wfms/s50,000 wfm/s
Storage depth360 Mpts110 Mpts to 220 Mpts70 Mpts110 Mpts
Bus Decoding RS-232/422/485/UART, LIN, CAN, CAN FD, I²C, SPI RS-232/422/485/UART, LIN, CAN, CAN FD, I²C, SPI RS-232/422/485/UART, LIN, CAN, CAN FD, I²C, SPI RS-232/422/485/UART, LIN, CAN, CAN FD, I²C, SPI
InterfacesBNC, WIFI, USB 3.0/2.0 host, USB Type-C, HDMI, trigger outputBNC, WiFi, USB 3.0/2.0 host, USB Type-C, HDMI, trigger outputBNC, WiFi, USB 3.0/2.0 host, USB Type-C, HDMI, trigger outputBNC, WiFi, USB 3.0/2.0 host, USB Type-C, HDMI, trigger output
Battery operationYesYesYesYes

All oscilloscopes

Micsig-ETO5004-SideMicsig-ETO5004-Oscilloscope
Product Nr.: ETO3504
ETO3504 GEN5 Tablet Oscilloscope
The ETO3504 has up to 360 Mpts memory depth, 4 channels, 350 MHz bandwidth and 3 GSa/s sampling rate.

€2,259.81*
Micsig-ETO5004-SideMicsig-ETO5004-Oscilloscope
Product Nr.: ETO5004
ETO5004 GEN5 Tablet Oscilloscope
The ETO5004 has up to 360 Mpts memory depth, 4 channels, 500 MHz bandwidth and 3 GSa/s sampling rate.

€2,378.81*
MHO14-100 OscilloscopeMHO14-100 Oscilloscope
Product Nr.: MHO14-100
MHO14-100 Oscilloscope
The Micsig 12 Bit MHO14-100 oscilloscope has 100 MHz bandwidth, an integrated multimeter & 16800mah battery.

€760.41*
MHO14-100N OscilloscopeMHO14-100N Oscilloscope
Product Nr.: MHO14-100N
MHO14-100N Oscilloscope
The Micsig 12-bit MHO14-100N oscilloscope has a 100 MHz bandwidth and a 16800 mAh battery.

€653.31*
MHO14-200 OscilloscopeMHO14-200 Oscilloscope
Product Nr.: MHO14-200
MHO14-200 Oscilloscope
The Micsig 12 Bit MHO14-200 oscilloscope has 200 MHz bandwidth, an integrated multimeter & 16000mah battery.

Models from €760.41*
€831.81*
MHO14-200N OscilloscopeMHO14-200N Oscilloscope
Product Nr.: MHO14-200N
MHO14-200N Oscilloscope
The Micsig 12-bit MHO14-200N oscilloscope has a 200 MHz bandwidth and a 16800 mAh battery.

Models from €653.31*
€724.71*
Micsig STO1004 OszilloskopMicsig Input STO1004
Product Nr.: STO1004
STO1004 Tablet Oscilloscope
The STO1004 is a 4-channel tablet oscilloscope with 100 MHz bandwidth, classic control buttons and touch screen.

€653.31*
Micsig-STO2002-Oszilloskop+Micsig-STO2002-back
Product Nr.: STO2002
STO2002 Tablet Oscilloscope
The STO2002 is a 2-channel tablet oscilloscope with 200 MHz bandwidth, classic control buttons and touch screen.

€546.21*
Micsig TO1004 FrontSchnittstellen TO1004 Micsig
Product Nr.: TO1004
TO1004 Tablet Oscilloscope
The TO1004 has 110 Mpts memory depth, 4 channels, 100 MHz bandwidth and 1 GSa/s sampling rate.

€748.51*
Micsig TO2002 frontTO2002 connectiviy micsig
Product Nr.: TO2002
TO2002 Tablet Oscilloscope
The TO2002 has 110 Mpts memory depth, 2 channels, 200 MHz bandwidth and 1 GSa/s sampling rate.

€558.11*
Micsig TO2004 frontSchnittstellen Micsig TO2004
Product Nr.: TO2004
TO2004 Tablet Oscilloscope
The TO2004 has up to 220 Mpts memory depth, 4 channels, 200 MHz bandwidth and 2 GSa/s sampling rate.

€1,105.51*
Micsig TO3002 frontTO3002 connectiviy micsig
Product Nr.: TO3002
TO3002 Tablet Oscilloscope
The TO3002 has up to 220 Mpts memory depth, 2 channels, 300 MHz bandwidth and 2 GSa/s sampling rate.

€1,129.31*
Micsig TO3004 FrontSchnittstellen TO3004 Micsig Oszilloskop
Product Nr.: TO3004
TO3004 Tablet Oscilloscope
The TO3004 has up to 220 Mpts memory depth, 4 channels, 300 MHz bandwidth and 2 GSa/s sampling rate.

€1,248.31*
