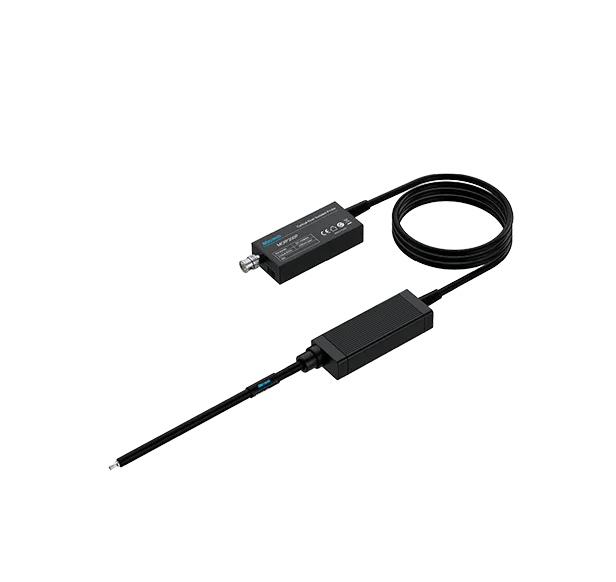

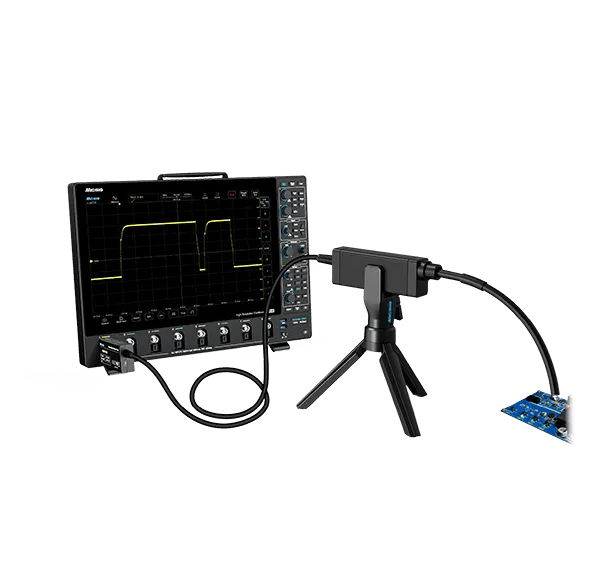

SigOFIT Series
Optically isolated fiber probes

The SigOFIT series offers optically isolated fiber optic high voltage probes that enable differential measurements in voltage ranges from ±5 to ±6250V and eliminate common mode interference.

Bandwidth
100 MHz to 1 GHz

Common mode voltage
85kVpk

Voltage ranges
±5V to ±6250V

DC Accuracy
1%

Power Supply
Laser

Interface
BNC

SigOFIT Series

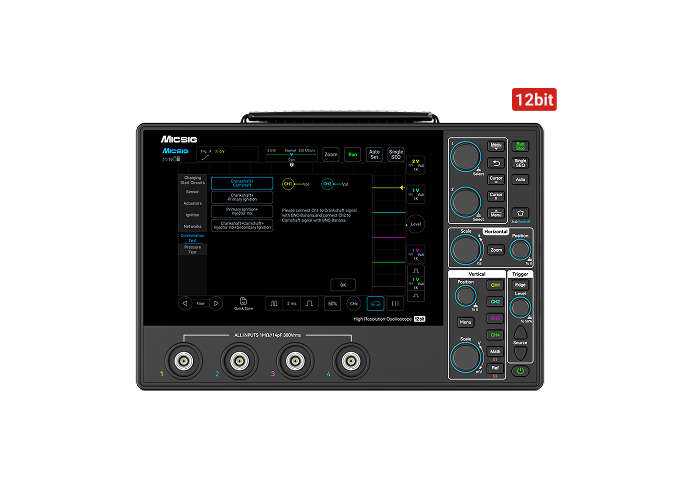

ATO / SATO / VATO Series
Automotive oscilloscopes

Micsig's automotive oscilloscopes offer comprehensive test coverage for the automotive sector with specialised diagnostic software. Thanks to their portable design, touchscreen and battery operation, they are ideal for the workshop, maintenance and laboratory.

Network testing
CAN, CAN FD, LIN, Flexray...

Component testing
Sensors, Actors

Ignition voltage
Primary & Secondary

Channels
2 to 4

Bandwidth
100 to 300 MHz

Operation
Touch & Control bar

Automobil Oscilloscopes

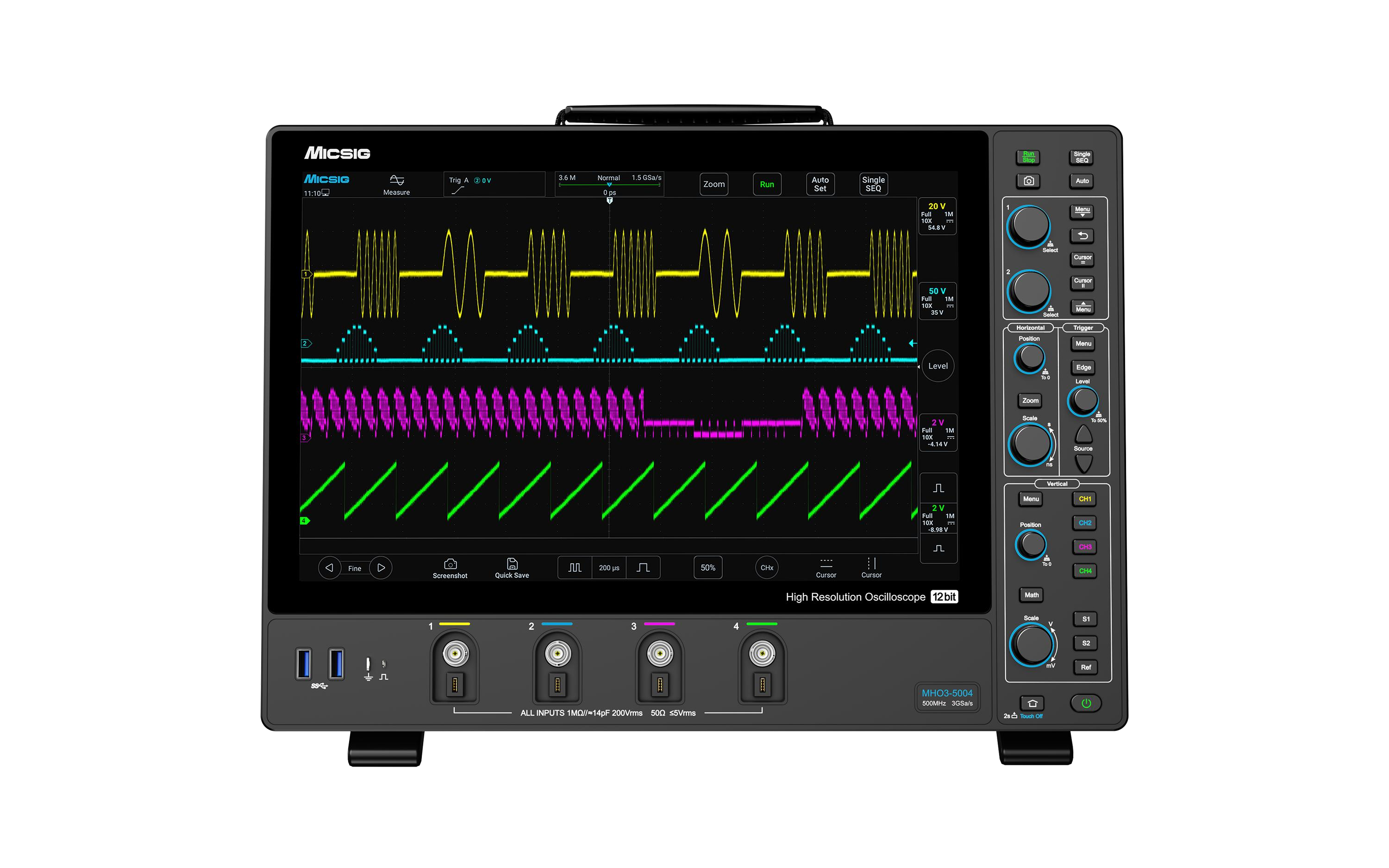

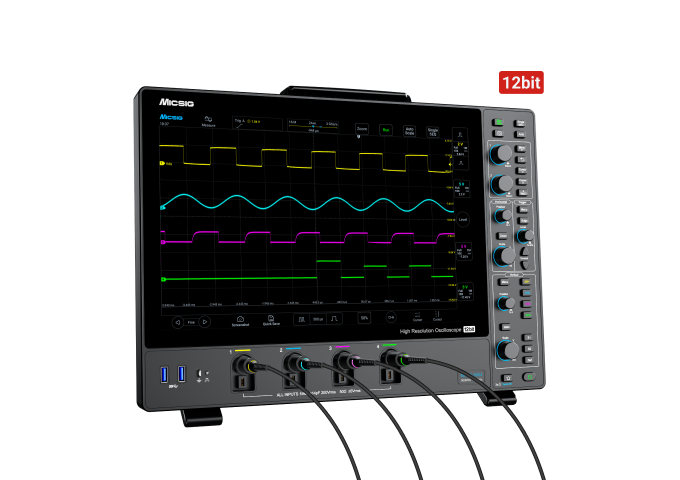

MDO / MHO3 / MHO6 Series
Bench oscilloscopes

Micsig offers benchtop oscilloscopes for simple and advanced applications in 8-bit and 12-bit versions.

Bandwidth
250/350/500M/1GHz

Display size
14 Inch Touch screen

Channels
4 to 8

Vertical Resolution
8 Bit / 12 Bit

Sampling Rate
3 GSa/s to 6 GSa/s

Capture rate
230k wfm/s to 500k wfm/s

Benchtop Oscilloscopes

TO / STO / ETO Series
Tablet Oscilloscopes

Micsig offers several series of portable oscilloscopes in different sizes and with and without button controls.

Bandwidth
100 MHz to 500 MHz

Display
8 to 14 Inch Touch Screen

Memory Depth
70 Mpts to 360 Mpts

Vertical Resolution
8 Bit to 12 Bit

Sampling rate
1 GSa/s to 3 GSa/s

Battery
7500 bis 13500 mAh

Tablet Oscilloscopes
