MHO68 oscilloscope series

The 12-bit oscilloscopes of the MHO series are powerful devices that combine a sharp and large display in a slim and modern design.

Bandwidth: 350 MHz / 500 / 1GHz
Sampling rate: 6GSa/s
Memory depth: 1800 Mpts
Analog channels: 8
Display: 16 inches, 1920 x 1200

Models

MHO68 Oscilloscope Series

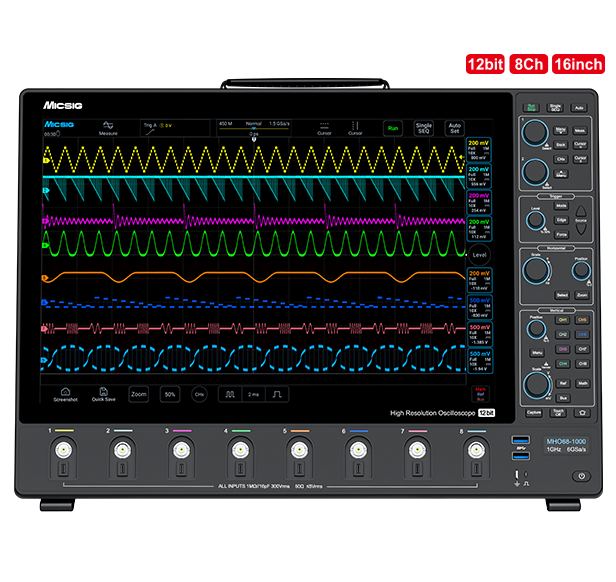

The MHO68-350 from Micsig is a high-resolution oscilloscope with a bandwidth of up to 350 MHz, a sampling rate of 6 GSa/s and 8 analog channels. It offers a memory depth of 1800 Mpts and a 12-bit vertical resolution, ideal for precise signal analysis. The device has a 16-inch touch display (1920x1200) and an ultra-thin design (3.52 cm). It supports various probes and ports such as USB, LAN and HDMI, making it versatile for different application areas.

For more detailed information about the functions, please refer to the respective product model page

Series overview

Model	MHO68-1000	MHO68-500	MHO68-350
Bandwidth	1 GHz	500 MHz	350 MHz
Rise time	&le ;0.4 ns	≤0.7ns	≤1 ns
Analogs Channels	8	8	8
Real-time sampling rate	6GSa/s	6GSa/s	6GSa/s
Memory depth	1800 Mpts</ td>	1800 Mpts	1800 Mpts
Vertical Resolution	12bit	12bit	12bit
Input impedance	50&Omega ; / 1MΩ	50Ω / 1MΩ	50Ω / 1MΩ
Noise	<80 µVrms	<80 µVrms	<80 µVrms
Interfaces	LAN, BNC, USB 3.0 host, USB Type-C, HDMI, trigger output</ td>	LAN, BNC, USB 3.0 host, USB Type-C, HDMI, trigger output	LAN, BNC, USB 3.0 host, USB Type-C, HDMI, trigger output
Display	16" full-touch display, Resolution 1920 x 1200	16" full-touch display, resolution 1920 x 1200	16" full-touch display, resolution 1920 x 1200</ td>
Dimensions/Net Weight	44.3.30.73.52cm / 5.7kg	44.3.30.73.52cm / 5.7kg< /td>	44.3.30.73.52cm / 5.7kg
