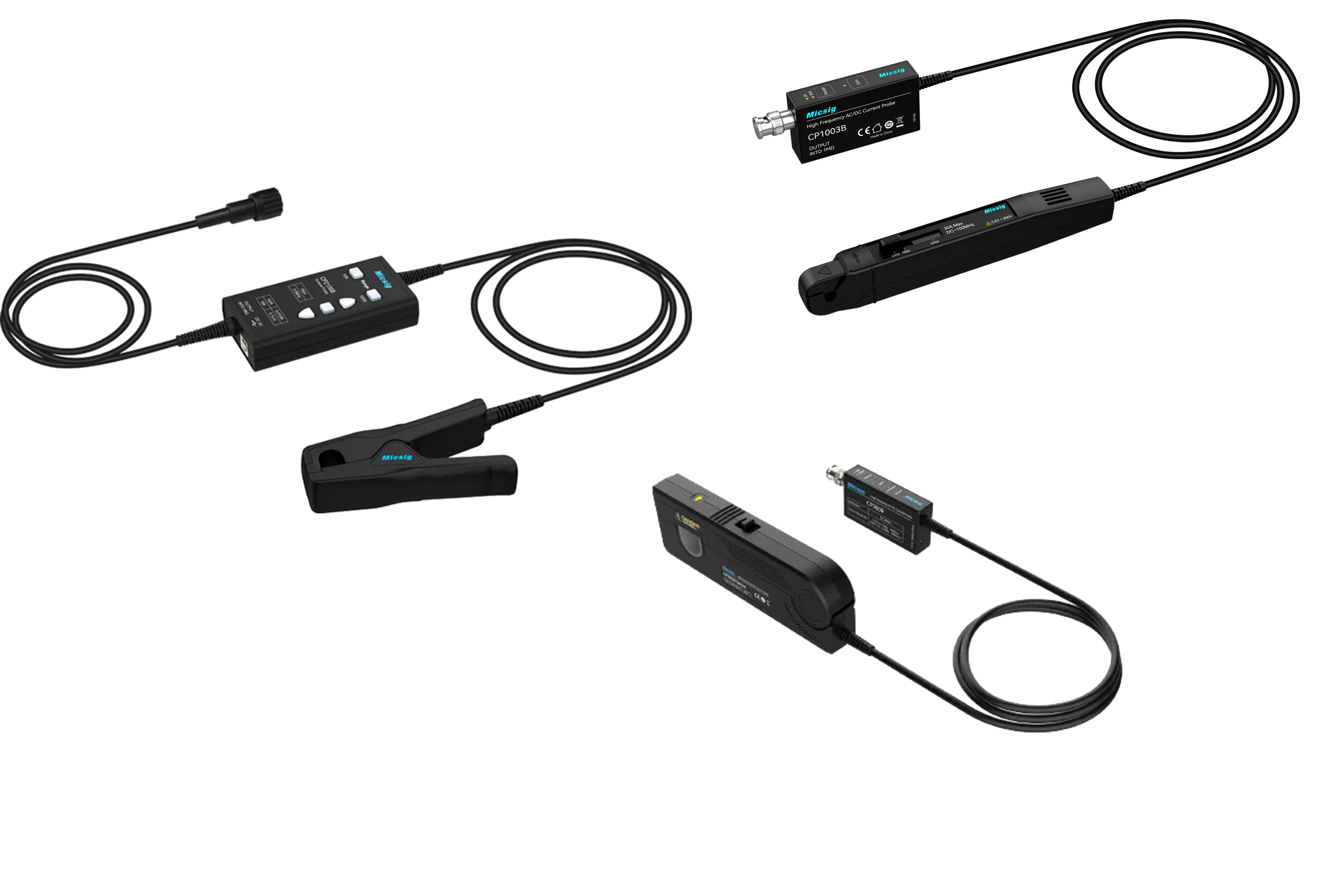

Current probe series
Series comparison
| Series |  RCP Series |  RCP500 Series |  ACP1000 Series |  CP2100 Series |  CP Series |
|---|---|---|---|---|---|
| Type | Rigowski | Rigowski | Clamp | Clamp | Clamp |
| Max. Bandwidth | 30 MHz | 300 KHz | 100 KHz | 800 KHz /2.5MHz | 50 / 100 MHz |
| Current type | AC | AC | AC | AC/DC | AC/DC |
| Peak current | 6000A | 500A | 1000A | 100A | 30A |
| Accuracy | 2% | 1% | 1 to 3% | 3% to 15% | 1% |
ACP1000
ACP1000 Current clamp The Micsig ACP1000 current clamp allows you to measure AC current from 100mA to 1000A with a bandwidth of 100 Hz to 100 KHz.
€189.00*
CP1003B
CP1003B AC/DC current probe The CP1003B current measuring probe has a current measuring range of 5A/30A and 100 MHz bandwidth
€999.00*
CP2100A
CP2100A Current Clamp The Micsig CP2100A probe has two optional measurement ranges of 10 A and 100 A at a bandwidth of 800 KHz.
€299.00*
CP2100B
CP2100B Current Clamp The Micsig CP2100B probe has two optional measurement ranges of 10 A and 100 A at a bandwidth of 2,5 MHz.
€499.00*
CP503B
CP503B AC/DC Current Probe The current measuring probe CP503B has a current measuring range of 6A/30A and 50 MHz Bandwidth.
€599.00*
RCP1200XS
RCP1200-XS Rogowski coil current probe The RCP1200-XS Rogowski coil current probe measures up to 1200 Apk alternating currents and high-frequency current signals.
€799.00*
RCP12000XS
RCP12000XS Rogowski coil current probe The RCP12000XS Rogowski coil current probe measures up to 12000 Apk alternating currents and high-frequency current signals.
Variants from €799.00*
RCP120XS
RCP120XS Rogowski coil current probe The RCP120XS Rogowski coil current probe measures up to 120 Apk alternating currents and high-frequency current signals.
Variants from €799.00*
RCP300XS
RCP300-XS Rogowski coil current probe The RCP300-XS Rogowski coil current probe measures up to 300 Apk alternating currents and high-frequency current signals.
€799.00*
RCP3000XS
RCP3000-XS Rogowski coil current probe The RCP3000-XS Rogowski coil current probe measures up to 3000 Apk alternating currents and high-frequency current signals.
Variants from €799.00*
RCP500
RCP500 Rogowski current probe The Micsig RCP500 current probe provides measurements at AC currents from 200mA to 500A at 15 Hz to 300 KHz.
€176.00*
RCP60XS
RCP60-XS Rogowski coil current probe The RCP60-XS Rogowski coil current probe measures up to 60 Apk alternating currents and high-frequency current signals.
Variants from €799.00*
RCP600XS
RCP600-XS Rogowski coil current probe The RCP600-XS Rogowski coil current probe measures up to 600 Apk alternating currents and high-frequency current signals.
€799.00*
RCP6000XS
RCP6000-XS Rogowski coil current probe The RCP6000-XS Rogowski coil current probe measures up to 6000 Apk alternating currents and high-frequency current signals.
Variants from €799.00*
