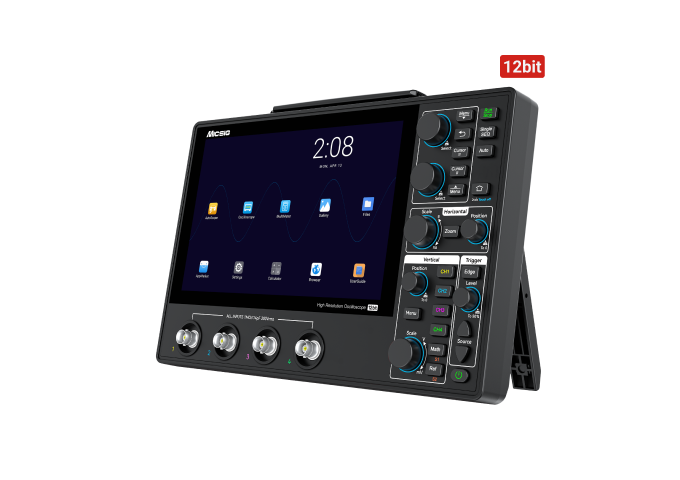

Micsig SATO1004 Automotive Oscilloscope
The SATO1004 is a 4 channel oscilloscope with extensive automotive diagnostic functions & 100 MHz bandwidth.
€719.00*
Content: 1
Volume discounts on request!
In Stock, Delivery time: 1 - 3 days
Further information
SATO1004 Version
Product number: SATO1004
Features
- 8 inch screen
- 100 MHz bandwidth
- 4 channels
- 1GSa/S sampling rate
- 70Mpts memory depth
- 130,000 wfm/s
Description
The Micsig SATO1004 is an oscilloscope specially developed for automotive diagnostics, offering a bandwidth of 100 MHz, four channels, a maximum real-time sampling rate of 1 GSa/s and a memory depth of 70 Mpts. This model is ideal for vehicle diagnostics where various signals and sensors need to be monitored and analysed. With its four channels, the SATO1004 enables the simultaneous acquisition of multiple signals, which is particularly useful when analysing complex vehicle systems such as engine control, ABS systems and when investigating the communication systems within a vehicle. The SATO1004's rugged design and automotive-specific features make it an indispensable tool for workshops and automotive engineers requiring accurate and reliable diagnosis of vehicle electronics.SATO series
The Micsig SATO series is an oscilloscope series characterised by its comprehensive diagnostic functions and user-friendly operation, especially in the field of automotive diagnostics. Compared to the ATO series, the SATO series offers slightly lower specifications, but remains a powerful option for users who need reliable measuring devices for vehicle diagnostics.A prominent feature of the SATO series is the combination of a 10.1-inch touchscreen and additional physical controls such as buttons and rotary encoders. This combination enables precise control and easy navigation, even in environments where the use of the touchscreen alone may be limited. These physical controls provide an alternative control option that is particularly beneficial in harsh or demanding working environments.
As with the ATO series, the SATO series supports a variety of automotive diagnostics functions. These include tests on various vehicle components such as charging and starting systems, sensors (e.g. ABS, mass airflow sensor, camshaft and crankshaft) and ignition systems. The ability to capture analogue signals and convert them into digital information remains a key benefit of the series, enabling precise diagnostics and troubleshooting.
The SATO series also offers a screen-sharing function and remote control options for evaluating the data. These features allow technicians to share diagnostic data in real time or control the oscilloscope remotely, greatly enhancing collaboration and support.
Overall, the SATO series offers a balanced combination of performance and ease of use, with the additional physical controls and touchscreen allowing for flexible and efficient use. Despite the lower specifications compared to the ATO series, the SATO series remains a reliable choice for use in automotive diagnostics.
Features
Oscilloscope Features
Android system with 32 GB
The STO1000 offers the world's first Android-based oscilloscope operating system and has 32 GB of storage space.
Touch screen keyboard
Software keyboard for the usual fast input with smart devices.
Powerful trigger functions
Supports Edge, Pulse, Logic, Time Out, Dwart PW, Slope, N Edge and Video.
Serial bus decoding
Supports serial triggering and decoding (I2C, SPI, RS232/UART, CAN, LIN).
Automatic measurements
31 automatic measurements for the most diverse measurement requirements.
70 Mpts memory depth
Allows you to zoom in on an area of the acquired signal using the touch screen.
Mouse operation
Micsig's oscilloscopes can also be easily controlled using a standard USB mouse.
Automatic scaling
Automatically adjusts the offset in real-time according to the magnitude and frequency of the signal.
High & Low Pass Filter
The filter function helps engineers exclude insignificant frequencies to eliminate interference and observe the true state of the signal.
calculation tools
Various tools in the form of apps are available for electronic calculations.
Screen Sharing Function
The screen content of the oscilloscope can be easily streamed to an external monitor via the built-in HDMI connection.
Remote control
The Micsig STO1000 series has a PC software and mobile phone app (Android/IOS) for remote control via WIFI and USB.
Specifications
| Oscilloscope Model |  SATO1004 |  ATO1004 | SATO2002 |
|---|---|---|---|
| Automotive diagnostics | Charging circuit, starter circuit, sensor, actuator, ignition test, communication test (incl. CAN, LIN, FlexRay, K, etc.), pressure test (cylinder pressure, intake and exhaust pressure, fuel pressure, etc.) | Charging circuit, starter circuit, sensor, actuator, ignition test, communication test (incl. CAN, LIN, FlexRay, K, etc.), pressure test (cylinder pressure, intake and exhaust gas pressure, fuel pressure, etc.) | Charging circuit, starter circuit, sensor, actuator, ignition test, communication test (incl. CAN, LIN, FlexRay, K, etc.), pressure test (cylinder pressure, intake and exhaust gas pressure, fuel pressure, etc.) |
| Operating system | Android | Android | Android |
| Rise time | ≤3.5ns | ≤3.5ns | ≤3.5ns |
| Bandwidth | 100 MHz | 100 MHz | 200 MHz |
| Channels | 4 | 4 | 2 |
| Memory depth | 70 Mpts | 110 Mpts | 70 Mpts |
| Signal acquisition rate | 130.000 wfm/s | 78.000 wfm/s | 130.000 wfm/s |
| Resolution | 8 bit | 8 bit | 8 bit |
| Display | 8 inch TFT LCD | 10.1 inch TFT LCD | 8 inch TFT LCD |
| Sampling rate | 1 GSa/s | 1 GSa/s | 1 GSa/s |
| Rotary encoder | ✓ | X | X |
| Internal memory | 32 GB | 32 GB | 32 GB |
| Interfaces | Wi-Fi, USB 3.0/2.0 host, USB Type-C, HDMI, trigger output, grounding | Wi-Fi, USB 3.0/2.0 host, USB Type-C, HDMI, trigger output, grounding | USB 2.0 Host & Device, Ethernet/LAN, Wifi |
| Safety | CAT I 300 Vrms (1-MΩ input) | CAT I 300 Vrms (1-MΩ input) | CAT I 300 Vrms (1-MΩ input) |
| Trigger modes | Edge, Pulse, Logic, Time Out, Dwart PW, Slope, N Edge and Video. | Edge, Pulse, Logic, Time Out, Dwart PW, Slope, N Edge and Video. | Edge, Pulse, Logic, Time Out, Dwart PW, Slope, N Edge and Video. |
| Bus decoding | UART, I²C, SPI, CAN, LIN | 1553B, 429 (Included) | UART, I²C, SPI, CAN, LIN | 1553B, 429 (Included) | UART, I²C, SPI, CAN, LIN | 1553B, 429 (Included) |
| Battery | 7500 mAh Lithium-ion battery | 7500 mAh Lithium-ion battery | 7500 mAh Lithium-ion battery |
