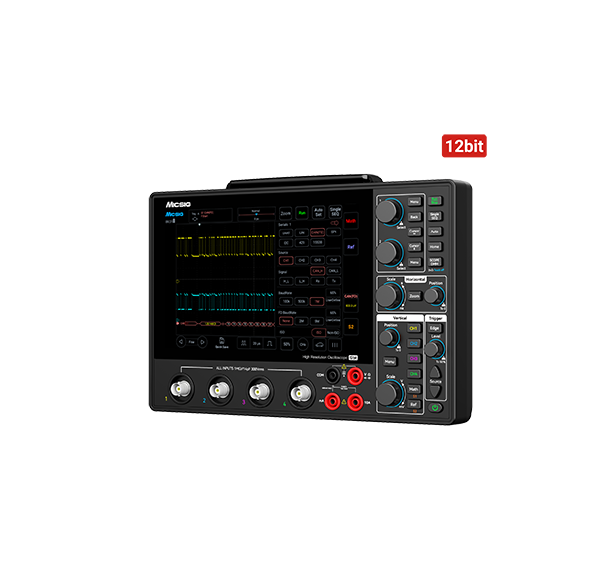

Micsig Micsig AHO14-200 Automotive Oscilloscope

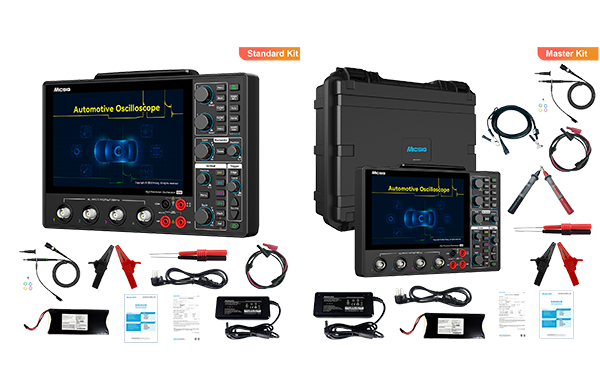

Model: AHO14-200 Master Kit

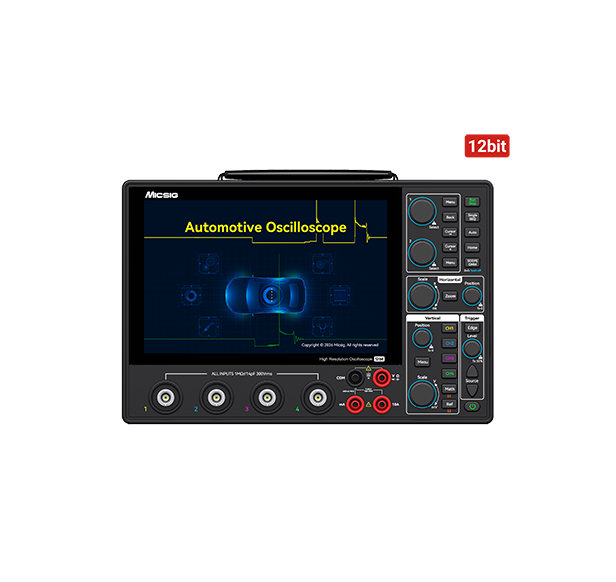

The Micsig AHO14-200 oscilloscope has a 200 MHz bandwidth and an integrated multimeter.
Volume discounts on request!
€650.00 Net
€938.91 incl. VAT
Shipping country
Customer Group
Währung
Delivery time: 1-2 weeks
Content: 1
Delivery time: 1-2 weeks
Further information
Product number: AHO14-200-Master-Kit
Features
- 200 MHz
- 1 GSa/s
- battery
- 4 channels
- multimeter
Documents
Description
Features
Product highlight
user-friendly operating system
The SigTest operating system, which has been continuously improved over the years through collaboration and suggestions from thousands of engineers, offers three operating modes: pure touch operation, pure button operation, and hybrid operation.
High storage depth
Segmented memory, by default, divides limited storage space into multiple small segments, thus capturing multiple trigger events in a single memory location. Thanks to convenient analysis and display functions, it enables both integrated and custom display. This makes analysis and positioning more precise and efficient, and significantly simplifies the search for fine details.
12-bit vertical resolution
The MHO1 series utilizes a high-resolution 12-bit ADC with up to 4096 quantization levels, which is 16 times that of a conventional 8-bit ADC. This allows users to perceive waveform details more completely and clearly.
Long-lasting battery
Despite its ultra-thin design, the AHO1 series features a soft rubber casing that is not only comfortable to hold but also provides excellent protection. Equipped with a powerful, long-lasting 16000 mAh lithium-ion battery, it can withstand over 1000 charge and discharge cycles. Furthermore, the device supports charging via power banks, so you don't have to worry about battery life and can complete your testing tasks with greater peace of mind.

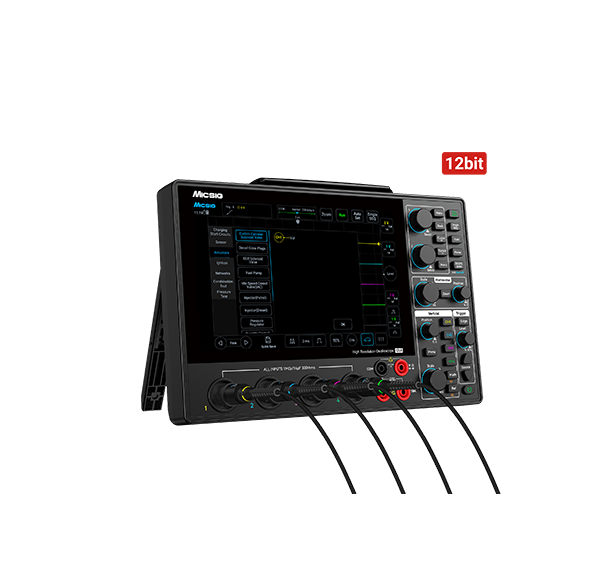

Vehicle diagnostic examples

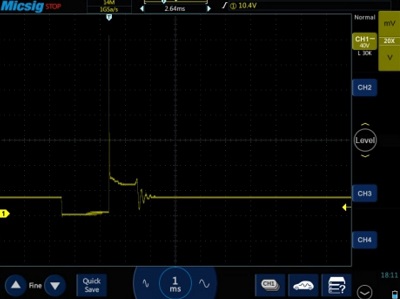

Primary ignition test
Ignition diagnostics for primary and secondary ignition
probe tests
ABS, lambda, knocking, fuel sensor diagnostics, etc.

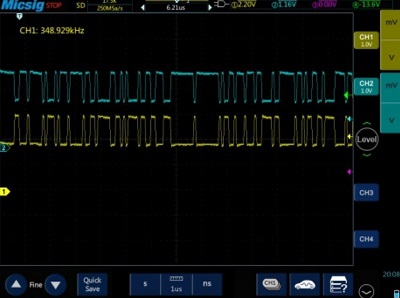

Network tests
Includes network testing for CAN, LIN, Flexray & K-line.

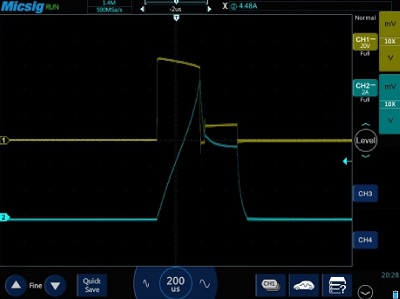

Drive diagnostics
Cooling fan, injector, variable timing diagnostics, etc.
Specifications
| Model |  AHO14-200 |
| bandwidth | 200 MHz |
| Ascent time | ≤ 1.75 ns |
| Analog channels | 4 |
| Sampling rate | 1 GSa/s |
| Storage depth | 110 Mpts |
| Maximum waveform capture rate | 50,000 wfms/s |
| Vertical resolution | 12-bit |
| interfaces | USB 3.0 Host, USB Type-C, LAN, HDMI, Trigger Out |
| Supported Tests | Charging/starting systems, sensors, actuators, ignition, networks (CAN L/H, CAN FD, LIN, FlexRay, K-Line), combination tests |
| Display | 8" TFT LCD touchscreen, 1280 × 800 pixels |
| Battery (optional) | 3.7 V, 16000 mAh Lithium-ion |
| charge | 12V power supply, supports USB Type-C |
| Multimeter accuracy | 4 5/6 digits |
| Dimensions / Weight | 265 × 174 × 31 mm / 1.73 kg |
