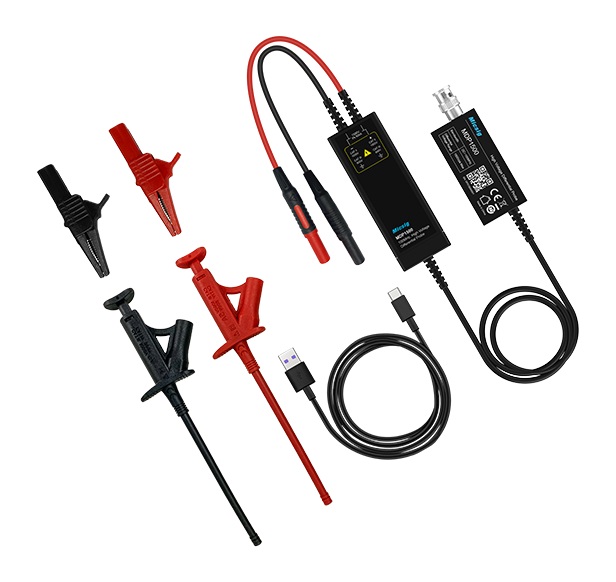

Micsig DP10013 v2 High-voltage differential probe
The Micsig DP10013 probe allows the measurement of 1500 V differential and common mode voltages.
Volume discounts on request!
€249.00 Net
€296.31 incl. VAT
Shipping country
Customer Group
Währung
In Stock, Delivery time: 1 - 3 days
Content: 1
In Stock, Delivery time: 1 - 3 days
Further information
Model
Product number: DP10013
Documents
Specifications
| Model specification |  DP10013 |
|---|---|
| Bandwidth | 100 MHz |
| Channels | 1 |
| Rise time | 3.5 ns |
| Attenuation | x50, x500 |
| Total range (DC+ACpp) | 150 V (50x) 1500 V (500x) |
| Max. Input voltage (compared to ground) | 1000 V, CAT I |
| CMRR | DC：>-80dB 100kHz: >-60dB 10MHz: >-30dB 100MHz: >-26dB |
| Output voltage | ≤ 3 V |
| Power supply | USB (5V), 0.85 W |
| Cable lengths | Input: 60 cm Output: 90 cm |
| Dimensions | 145 x 60 x 27 mm |
